Motivation Flying Start

Flying-Start-Racing-Wheelchair-1000px

Supplier

Motivation

Overview

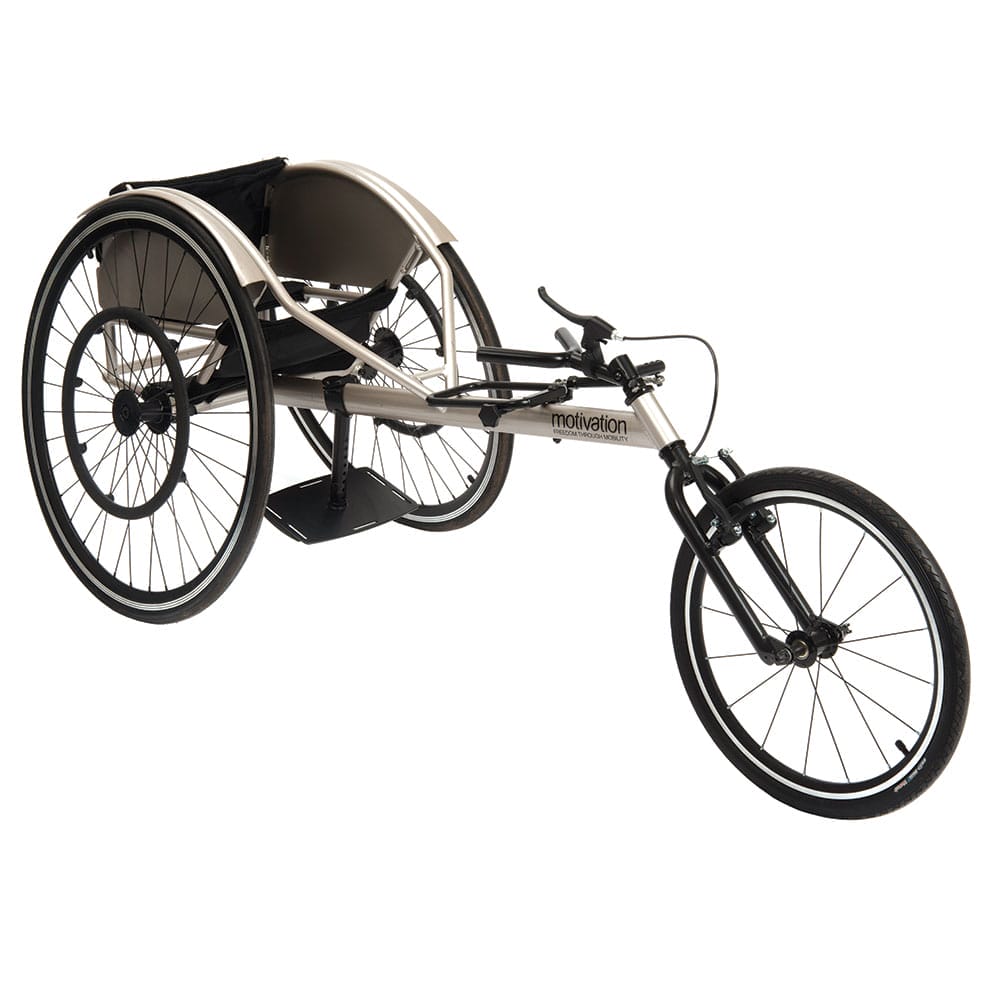

The Motivation Flying Start Wheelchair is an aluminum frame dedicated track and marathon racing wheelchair and is intended to be used for promoting and developing wheelchair sports at the national or local club level.

Intended Users

Children and adults
Entry-level and experienced athletes
Users without postural support needs

Special order only. Contact a sales agent for a free quote.

PRODUCT DETAILS

Color: S = Green, M = Red, L = Blue
Four widths: 250 mm (10”), 300 mm (12”), 350 mm (14”), 400 mm (16”)
20” wheel at the front and a removable anti-tip bar at the rear
700c performance sport rear wheels with grippy, rubber-coated push rims for good propulsion when racing
Uses common wheel and bearing sizes for easy repair
Comes with a spare set of front and rear wheel tires and inner tubes
Three Velcro body straps (hip strap, knee strap, and foot strap) for a wide range of support options and adjustment
Supportive fabric backrest made of durable and water resistant nylon
The front wheel can be quickly removed, for product storage and transportation
Comes with a maintenance toolkit
This product is ISO 9001 (2008- 2013) and ISO 13845 (2008- 2013) certified and has the CE mark so meets EU consumer requirements

SIZES

Product Number	WMRC – 02
Seat Depth	The seat panel must be set according to the user’s preference: sitting or kneeling. For sitting position the panel can be set to either 175mm (7”) or 250mm (10”) depth. For kneeling, the panel is set to 350mm (14”) depth. The seat is tension adjustable.
Backrest Height	The backrest can be either 150mm (6”) or 200mm (8”) high. But normally is kept at the 200mm (8”) setting. The backrest straps are tension adjustable to allow different backrest contour shapes depending on whether the athlete is kneeling or sitting.
Footrest Height	The footrest is height adjustable 10 positions, 135mm total height adjustability range, min height 175mm, max height 310mm. The footrest is also angle adjustable in four angles. The footrest can be adjusted back and forth, 350mm adjustment range
Anti-tip Bar	The anti-tip can be quickly inserted onto the back of the wheelchair with the end close to the ground, but can also be inserted the other way up, and out the way when not needed.
Straps	One foot strap, one knee strap, and one lap strap are supplied with the chair. All the straps have built-in adjustability with the Velcro fastening system.
Arm Support	Low profile curved armrests
Backrest	Supportive fabric backrest, with tension adjustable straps, using a Velcro fastening system. Durable and water resistant nylon upholstery.
Front Wheel Dimensions	One front wheel, pneumatic tire, size 20” x 1.20”
Rear Wheel Dimensions	700c performance rear wheels, with 36 spoke aluminium rims. Robust 36 spoke aluminium hub with two sealed bearings and diameter 12 mm high tensile axles.
Push Rims	20 mm diameter, rubber coated push rims (335 mm wide)
Seat	Slung fabric seat upholstery, with tension adjustable straps. Water resistant nylon upholstery.
Tires	Pneumatic – high pressure, low profile sport tires
Weight	13 kg
Package Size	1610 x 715 x 530mm

ACCESSORIES

Hip strap, knee strap, and foot Velcro straps
Spare set of front and rear wheel tires and inner tubes
Maintenance tool kit

SUPPORT MATERIALS

PROVISION

Important: This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
