Supplier

 Motivation

Overview

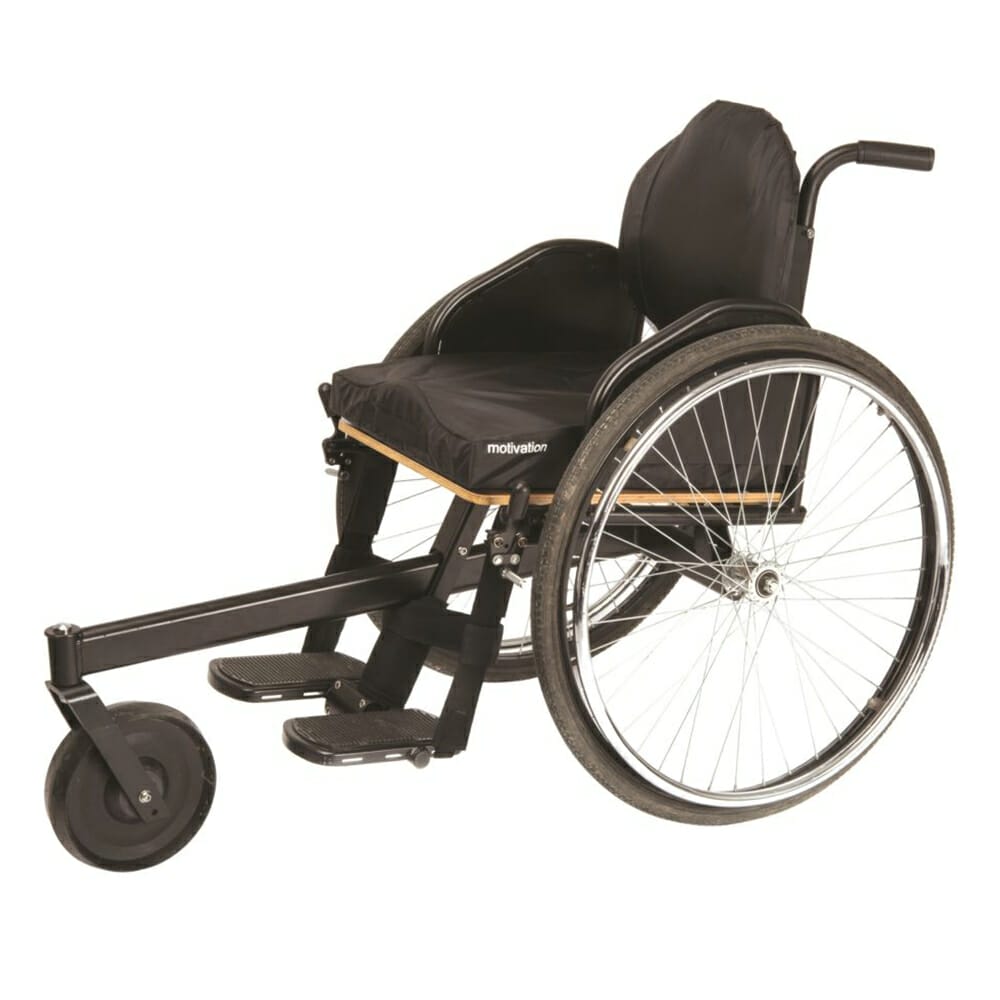

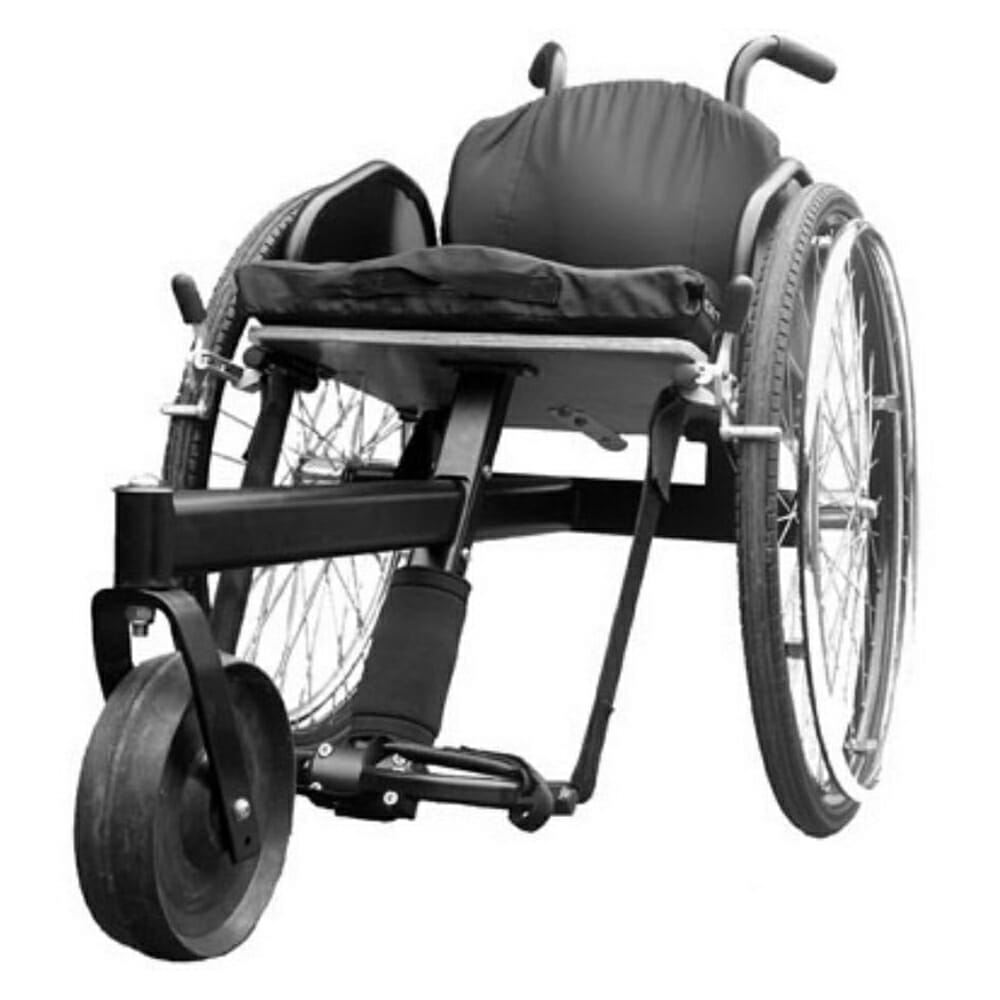

  • Robust and sturdy three-wheel active wheelchair with a large rubber caster wheel, large 26” (66 cm) rear wheels, and a long wheelbase that allows for safe and stable mobility over uneven ground
  • Provides a range of adjustable features to ensure optimal fitting and comfort
  • Intended for use outdoors and for limited use indoors; suitable for use in rugged conditions and on uneven surfaces
  • The length and weight of this wheelchair limits its ability to be transported easily
  • Each chair comes with a foam pressure relief cushion, basic tool kit, and tire repair kit
  • The Rough Terrain can be converted into a tricycle by attaching Motivation’s Clip-on Tricycle.

Intended Users
  • Intended for active adult users, older adults (over 65 years old), and teenagers/older children who use the wheelchair as their primary method of mobility and do not require postural support that exceeds the support features of the Motivation Rough Terrain wheelchair





Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

  • Rigid frame is powder coated steel with zinc coated fasteners and aluminum components
  • Solid seat base for a durable sitting platform
  • Includes a contoured pressure relief cushion suitable for all users and for users with high risk of pressure sores. Cushion allows for comfortable sitting over long periods and gives good postural support. The cushion has a removable and washable water-resistant cover.
  • Padded seat and back
  • Comes with a height adjustable sacral pad
  • Adjustable backrest height and angle
    • Removable armrests
    • Backrest folds down
    • Tire repair kit
    • Basic tool kit for maintenance
    • Estimated assembly time: 30 minutes
    • Certifications: ISO 13485, ISO 14001, CE mark
    • Passed ISO 7176
    • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

CLASP Product Number WM3001 WM3002 WM3003 WM3004
Seat Width 14.2” (36 cm) 15.7” (40 cm) 17.3” (44 cm) 18.9” (48 cm)
Seat Depth The seat base and the cushion can be adjusted to three different depths: 15.7”, 17.3”, 18.9” (40 cm, 44 cm, 48 cm)
Back Height The backrest can be set in two height positions: high and low; the high position is 3.1″ (8 cm) higher than the low position
Back Angle The backrest can be set to three angles: upright, middle, and back with a total adjustment range of 8°
Footrest Height The footrest can be adjusted to 11 different heights with a range of 4.7” (12 cm)
Rear Wheel Dimensions

24″ x 1.4″ diameter (61 cm x 4 cm) with 36-spoke aluminum rims, robust 36-spoke hub with two 6001zz bearings and 0.47” (1.2 cm) diameter quick release axles


Wheelbase Length From caster axle to rear wheel axle or caster axle: 29.53″ (75 cm)
Rear Wheel Axle Adjustability The center of gravity can be set in active and safe rear wheel positions; the safe position is 2.8″ (7 cm) further back than the active
Caster Dimensions One rubber caster wheel, diameter: 8.7” (22 cm); width: 2.4” (6 cm)
Overall Width Open 24.41″ (62 cm), 25.98″ (66 cm), 27.56″ (70 cm), 29.13” (74 cm)
Overall Height Closed 18.6” (47 cm)
Overall Length 44.49” – 47.24″ (113 – 120 cm)
Product Weight S: 49.2 lb (22.3 kg); M: 49.6 lb (22.5 kg); L: 50 lb (22.7 kg); XL: 50.5 lb (22.9 kg) – with cushion
Weight Capacity 250 lb (113 kg)
Packaging One unit per carton
Package Size 35.4″ x 26″ x 13″ (90 cm x 66 cm x 33 cm) 35″ x 26.8″ x 13.8″ (89 cm x 68 cm x 35 cm) 35″ x 26.4″ x 13″ (89 cm x 67 cm x 33 cm) 35.4″ x 26.8″ x 13.8″ (90 cm x 68 cm x 35 cm)
Package Weight 58.5 lb (27 kg) 61.7 lb (28 kg)

ACCESSORIES

Basic tool kit and tire repair kit included:

  • 1 Tire pump
  • 2 Allen keys – “L” shape 5 mm
  • 1 Tool kit (user) bag
  • 1 Pad
  • 2 Multi-function spanners
  • 1 Allen key – “L” shape 4 mm
  • 1 Allen key – “L” shape 6 mm
  • 1 Allen key 5mm ball-end

SUPPORT MATERIALS

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

Supplier Product Summary

Download

Assembly Manual

Download

Part Breakdown

Download

Care and Maintenance Guide

Download

Health and Mobility Guide

Download

PROVISION

Important: This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
