Supplier

Diversability Development Organization (DDO)

Overview

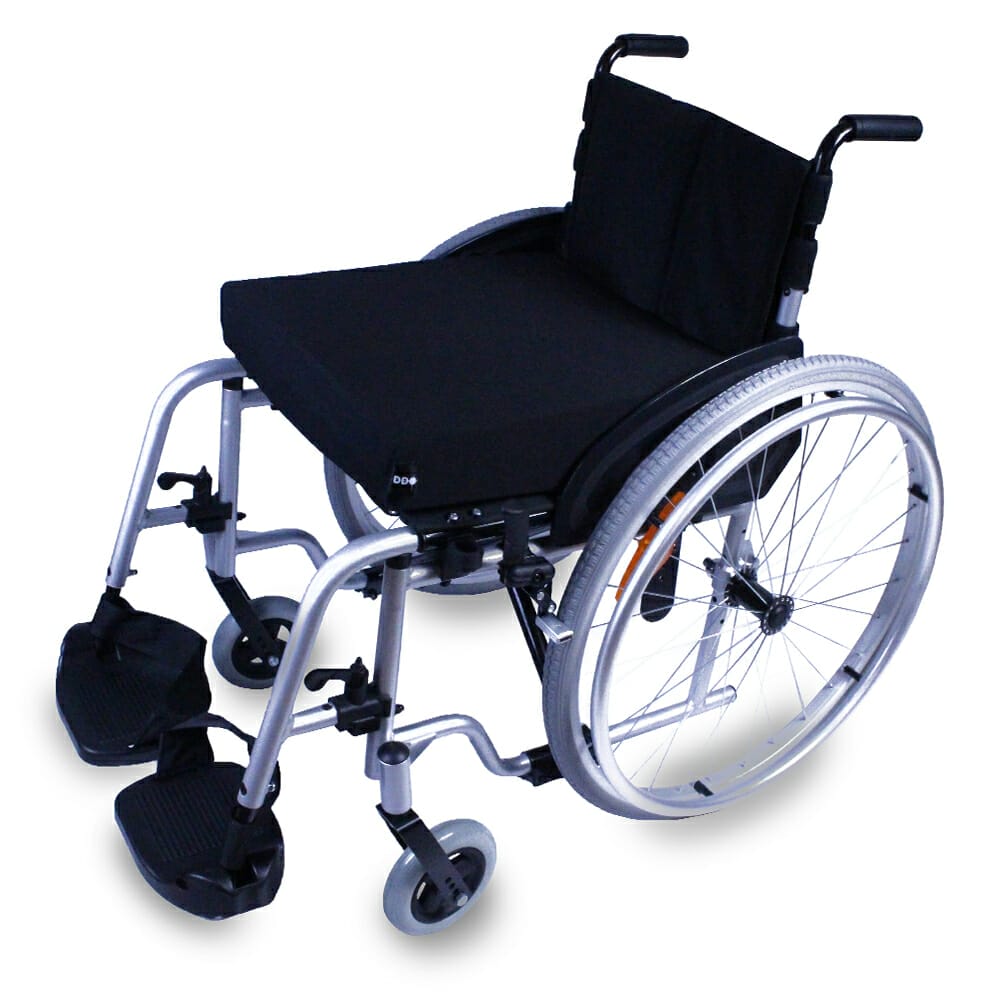

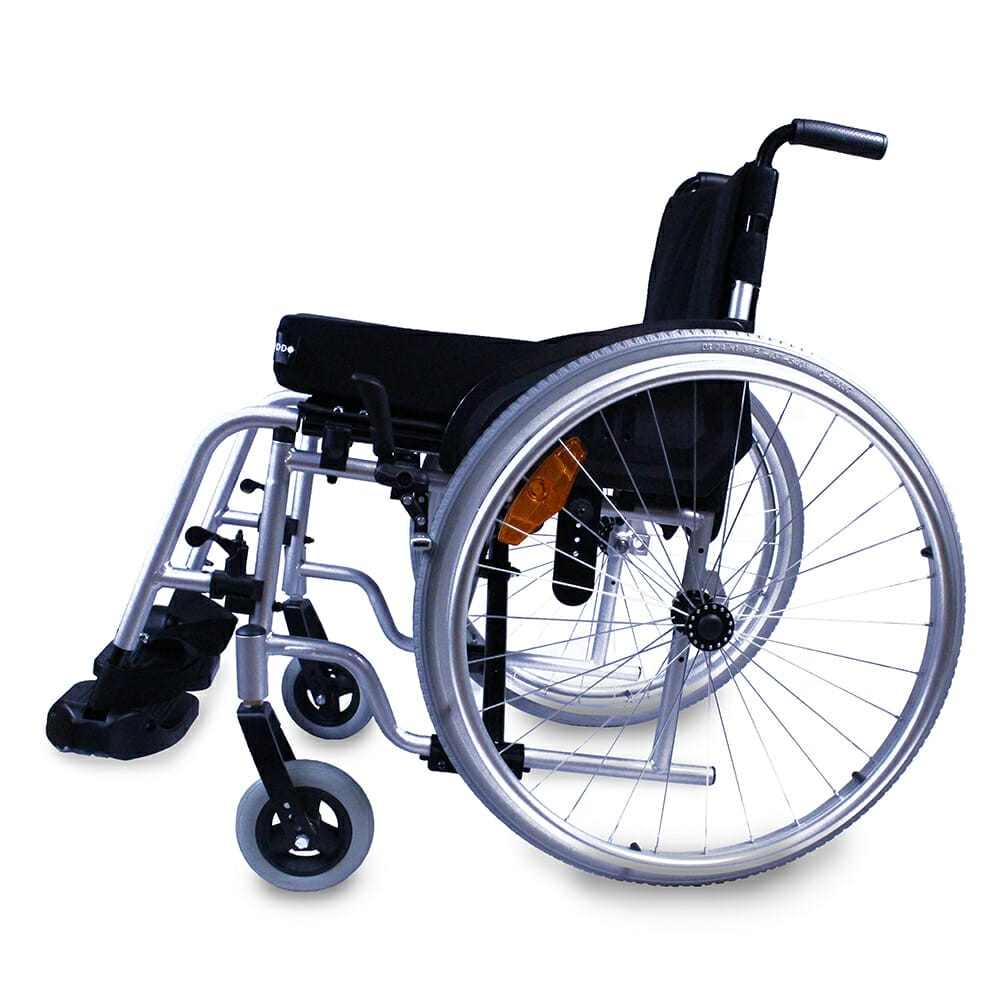

  • An active folding wheelchair designed for urban and semi-urban environments
  • Plenty of adjustability for improved comfort and posture
  • Comes with the D-Slim Plus pressure relief cushion with an elastic cover

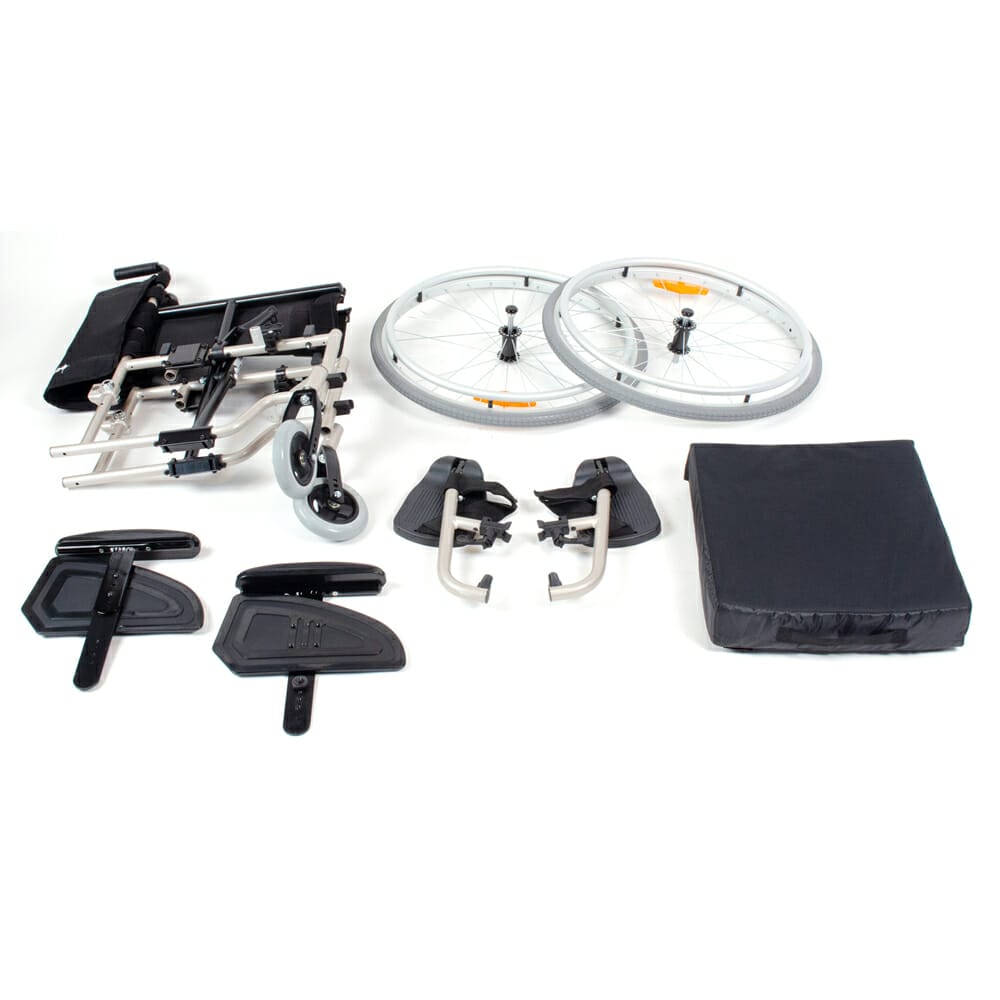

  • Easily transported thanks to its light weight and removable components

Intended Users

  • Active adults and teenagers without postural support needs who regularly use a wheelchair; less active users; older adults

Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.



PRODUCT DETAILS

  • Reinforced X-Brace folding steel frame
  • Padded seat and backrest
  • D-Slim Plus pressure relief cushion with elastic top cover
  • Adjustable seat depth
  • Adjustable backrest height and back support tension
  • Adjustable footrest height, including removable flip-up composite footplates with heel loops
  • Push handles adjustable in three heights
  • Removable sideguards with optional armrest padding
  • Quick release rear wheels with two axle positions
  • Solid rear tires with aluminum rims
  • Fully compatible with the D-Seat postural support unit with quick conversion into a postural support wheelchair
  • Basic tool kit for maintenance
  • Certifications: ISO 9001, ISO 13485, ISO 14001, CE mark, Medicare E2603 skin protection cushion certification for D-Slim Plus pressure relief cushion
  • Passed ISO 7176
  • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

CLASP Product Number D-XB-01S D-XB-01M D-XB-01L
Product weight  33 lb (15 kg) 35 lb (16 kg) 37 lb (17 kg)
Seat Width 14″ (36 cm) 16″ (41 cm) 18″ (46 cm)
Seat Depth 14.5″ (37 cm), 16.5″ (42 cm), adjustable
Backrest Height 13″ (33 cm), 15″ (38 cm), 17″ (43 cm), adjustable
Back Angle Fixed, tension-adjustable back
Arm Support Adjustable and removable with five height and three depth options
Footrest Height 14″ (36 cm) – 20″ (51 cm), adjustable (seven positions)
Rear Wheel Dimensions 24″ x 1.4″ diameter (61 cm x 3.5 cm)
Rear Wheel Axle Adjustability Two positions: active, stable
Caster Dimensions 6″ x 1.25″ diameter (15 cm x 3 cm) solid tire castor wheel
Overall Width Open 14″ (36 cm):
21.25″ (54 cm)
16″ (41 cm):
23.25″ (59 cm)
18″ (46 cm):
25.19″ (64 cm)
Overall Width Closed 10.6″ (27 cm)
Overall Length Active position: 39″ (99 cm); safe position: 40″ (102 cm)
Weight Capacity 251 lb (114 kg)
Packaging One unit per carton
Package Size 30″ x 18″ x 35″ (77 cm x 45 cm x 88 cm)
Package Weight 55.1 lb (25 kg) 56.2 lb (25.5 kg) 57.3 lb (26 kg)

ACCESSORIES

Toolkit included with each wheelchair:

  • 1 Allen key 3 mm
  • 1 Allen key 4 mm
  • 1 Allen key 5 mm
  • 2 Flat multi-spanners

SUPPORT MATERIALS

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

User Manual

Download

Assembly Guide

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
